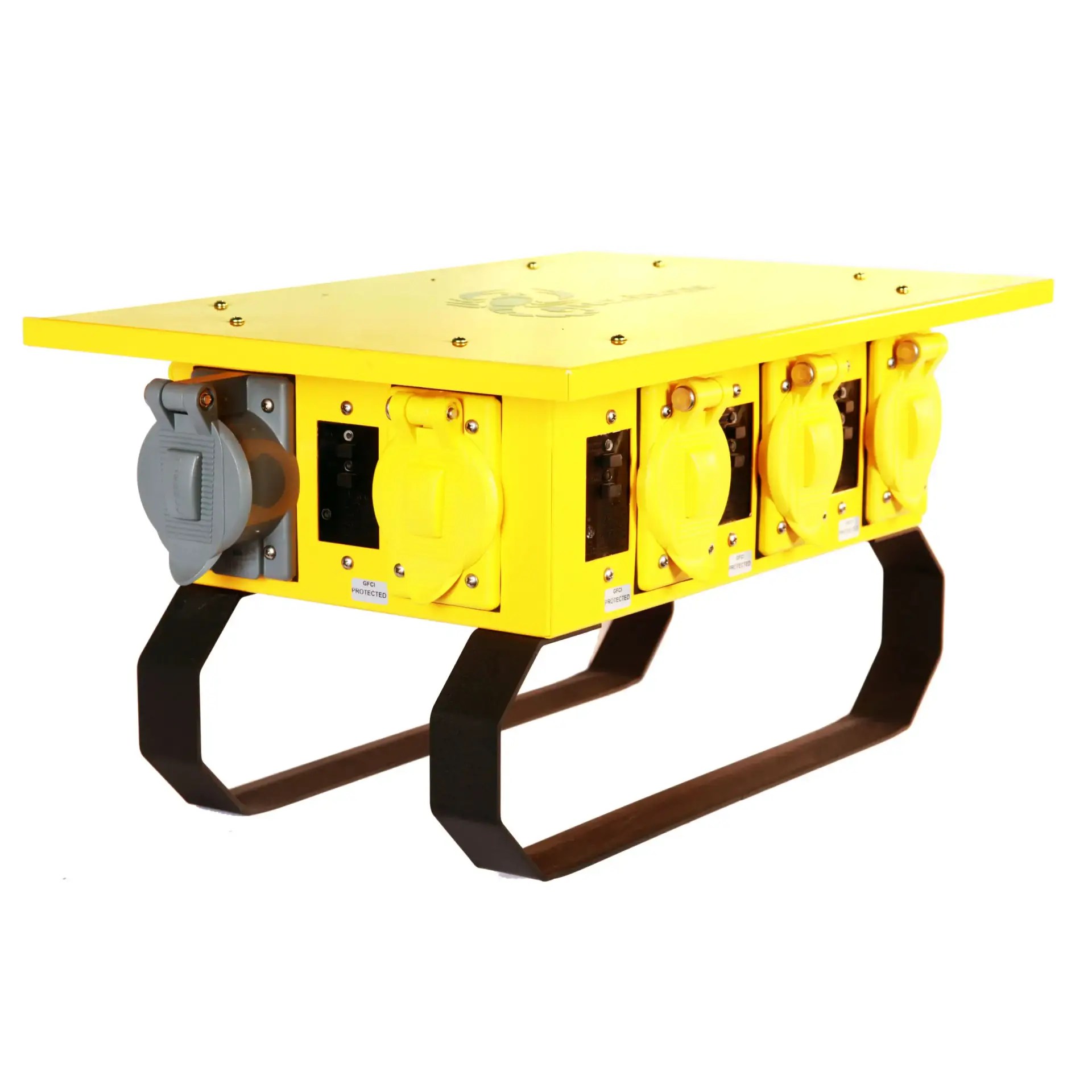

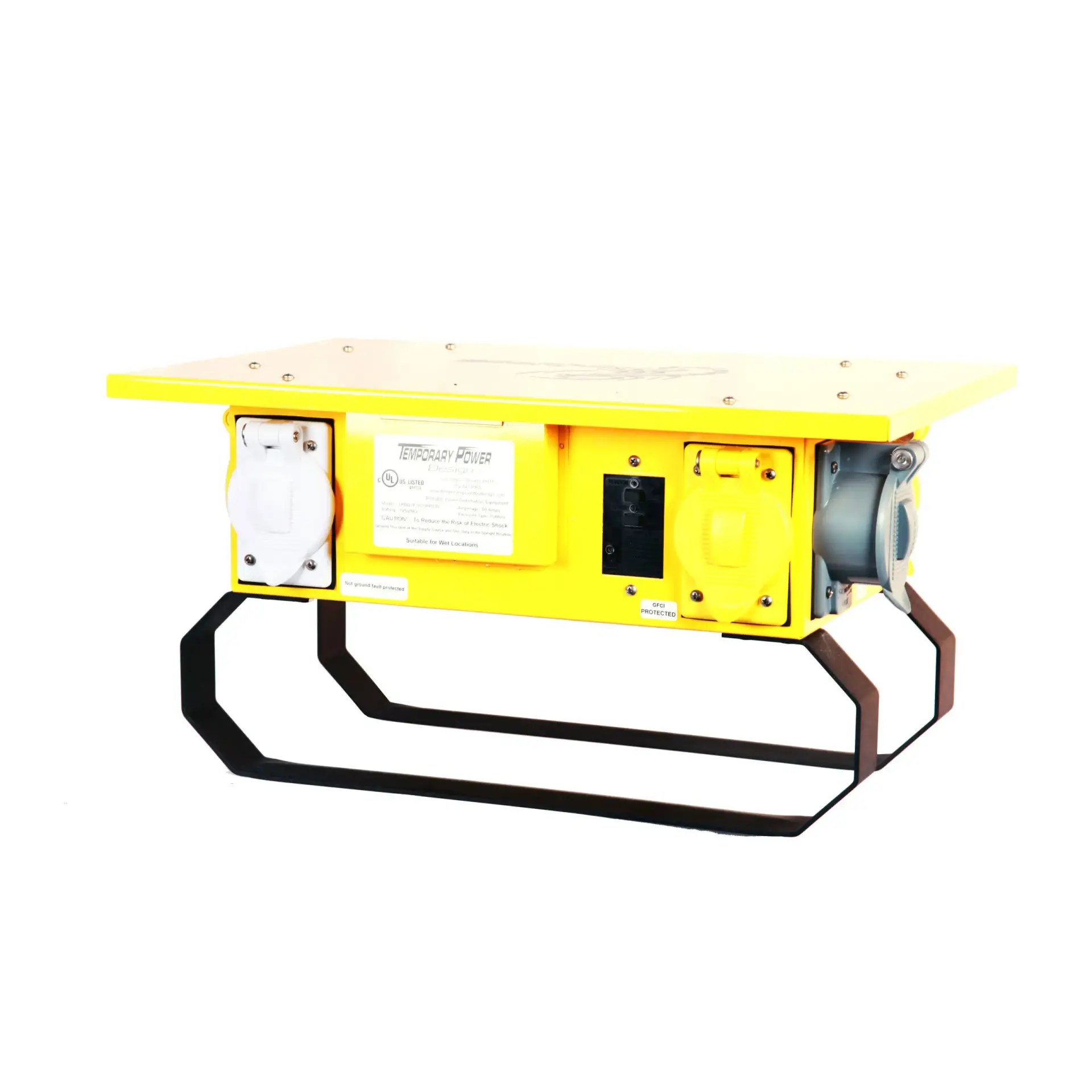

The Scorpion Single Phase Construction Distro works well when customers need weather-resistant power access and branch protection.
Because it combines a 50A inlet, a 50A pass-thru, and a 30A NEMA L6-30 receptacle, it distributes temporary power from one unit.
In addition, six GFCI modules, DIN rail mounted breakers, insulated termination blocks, and stainless steel hardware support safer, more organized field use.
Meanwhile, the UL 3R listed enclosure gives the unit a stronger outdoor-ready construction profile.
Scorpion Single Phase Construction Distro FAQs
- What is the Scorpion Single Phase Construction Distro used for?
It provides portable power distribution for construction and temporary power applications. - What type of input does the Scorpion use?
It uses one 50A inlet with a snap-back cover. - What outputs does the Scorpion include?
It includes one 50A pass-thru receptacle with a weather resistant lift cover and one 30A NEMA L6-30 receptacle with a weather-resistant lift cover. - What over-current protection does it include?
It includes six 20A single-pole DIN rail mounted breakers and one 30A double-pole DIN rail branch circuit protection breaker. - Does it include GFCI protection?
Yes. It includes six GFCI modules with a 4-6 mA trip level. - What special features does the Scorpion include?
It includes stainless steel fasteners, machine screws, nylon locknuts, DIN rail mounted breakers, and insulated termination blocks for power distribution. - Is the Scorpion listed for weather exposure?
Yes. The Scorpion is UL 3R listed. - What are the dimensions and weight?
It measures 22x15x12 and weighs 30 lbs.
