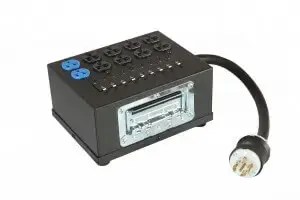

BK Doghouse

The BK Doghouse provides organized portable power distribution for entertainment, event, and temporary power applications.

It features a 30A NEMA L21-30 plug on 18 inches of 10/5 SOOW cable, nine 15A NEMA 5-15R single straight blade receptacles, and nine 10A flush-rocker branch circuit protection breakers.

In addition, the metal powder-coated enclosure includes a fold away handle and rubber feet on two sides for added versatility.

Finally, the unit measures 10x8x5 and weighs 9 lbs.

Request a Quote

This BK Doghouse works well when customers need multiple straight-blade outputs in one compact portable unit.

Because it uses a 30A NEMA L21-30 plug on 10/5 SOOW cable, it gives users a dependable upstream connection for branch power distribution.

In addition, nine 5-15R receptacles and nine flush-rocker breakers help organize multiple output circuits in one enclosure.

Meanwhile, the powder-coated metal housing, fold away handle, and side-mounted rubber feet support portability and field use.

FAQ

What is the BK Doghouse used for?
It provides compact portable power distribution for applications that need multiple straight-blade receptacles from one upstream connection.
What type of input does this doghouse use?
It uses a 30A NEMA L21-30 plug on 18 inches of 10/5 SOOW cable.
What outputs does this unit include?
It includes nine 15A NEMA 5-15R single straight blade receptacles.
Does it include circuit protection?
Yes. It includes nine 10A flush-rocker branch circuit protection breakers.
What enclosure features does it include?
It uses a metal powder-coated enclosure with a fold away handle and rubber feet on two sides.
What are the dimensions and weight?
The unit measures 10x8x5 and weighs 9 lbs.
