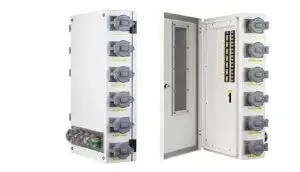

This Generator Mobile Power Distribution Panel Hanger works well when customers need high-capacity portable power from a hanging or free-standing unit.
Because it combines Series 16 Cam input with ten 50A California Style receptacles, it distributes three-phase 120/208V power from one source.
In addition, ten 50A two-pole breakers help protect the branch circuits.
Meanwhile, the gasketed powder-coated aluminum enclosure, viewing window, and flexible mounting options support rugged field use.
It also connects directly from a generator or another three-phase WYE 120/208 volt power source.
Finally, it meets UL 1640 specifications.
Generator Mobile Power Distribution Panel Hanger FAQs
- What is the Generator Mobile Power Distribution Panel Hanger used for?
It provides portable power distribution from a generator or another three-phase WYE 120/208 volt power source. - What type of input does this unit use?
It uses five phase color-coded Series 16 Cam-Devices with five clear snapback covers. - What outputs does this panel include?
It includes ten 50A 125/250V California Style receptacles with weatherproof snapback covers. - Does it include breaker protection?
Yes. It includes ten 50A two-pole breakers. - What enclosure features does it include?
It uses an all-welded aluminum enclosure with a hinged removable front door, viewing window, full gasketing, powder coating, hanging hooks, and feet. - What are the dimensions and weight?
The panel measures 17”H x 21”W x 10”D. Overall dimensions are 27”H x 22”W x 13”D, and the unit weighs 60 pounds.
