Continuous Equipment Grounding and Bonding System
At the heart of the assembly is a continuous, un-spliced #12 AWG insulated solid-copper equipment grounding conductor. The incoming source equipment grounding conductor is connected to this internal grounding path, which then remains physically continuous throughout the complete assembly.
At each duplex receptacle, only the insulation required for the grounding termination is removed. The solid-copper conductor is formed and secured at the receptacle grounding terminal without cutting the conductor, preserving conductor continuity from the first receptacle through the final receptacle.
After the final receptacle, the same continuous grounding conductor extends to dedicated bonding points on the powder-coated steel enclosure body and enclosure cover. This creates a common equipment-grounding and bonding path for all receptacles and exposed metallic enclosure components.
*Grounding integrity does not depend upon receptacle mounting screws, enclosure mounting wings, hinges, or incidental metal-to-metal contact through powder-coated surfaces.
Designed for Technical Applications
- Audio / Video & Broadcast — FOH positions, production control, video systems, audio equipment, processors, and technical racks where a dependable equipment-grounding path is desirable.
- Electronic Test & Measurement — Oscilloscopes, meters, bench power supplies, test fixtures, diagnostic equipment, and device-under-test workstations.
- Laboratory & R&D — Instrumentation benches, engineering laboratories, development areas, calibration stations, and technical research environments.
- Production & Assembly — Electrical and electronic manufacturing stations, QA workstations, burn-in areas, repair benches, and production support equipment.
- Live Event & Entertainment — Portable technical power for trade shows, broadcast positions, lighting and video control, production workstations, and event support areas.
- Industrial Control & Instrumentation — PLC programming stations, control-system service areas, instrumentation benches, and industrial troubleshooting workstations.
Key Construction Features

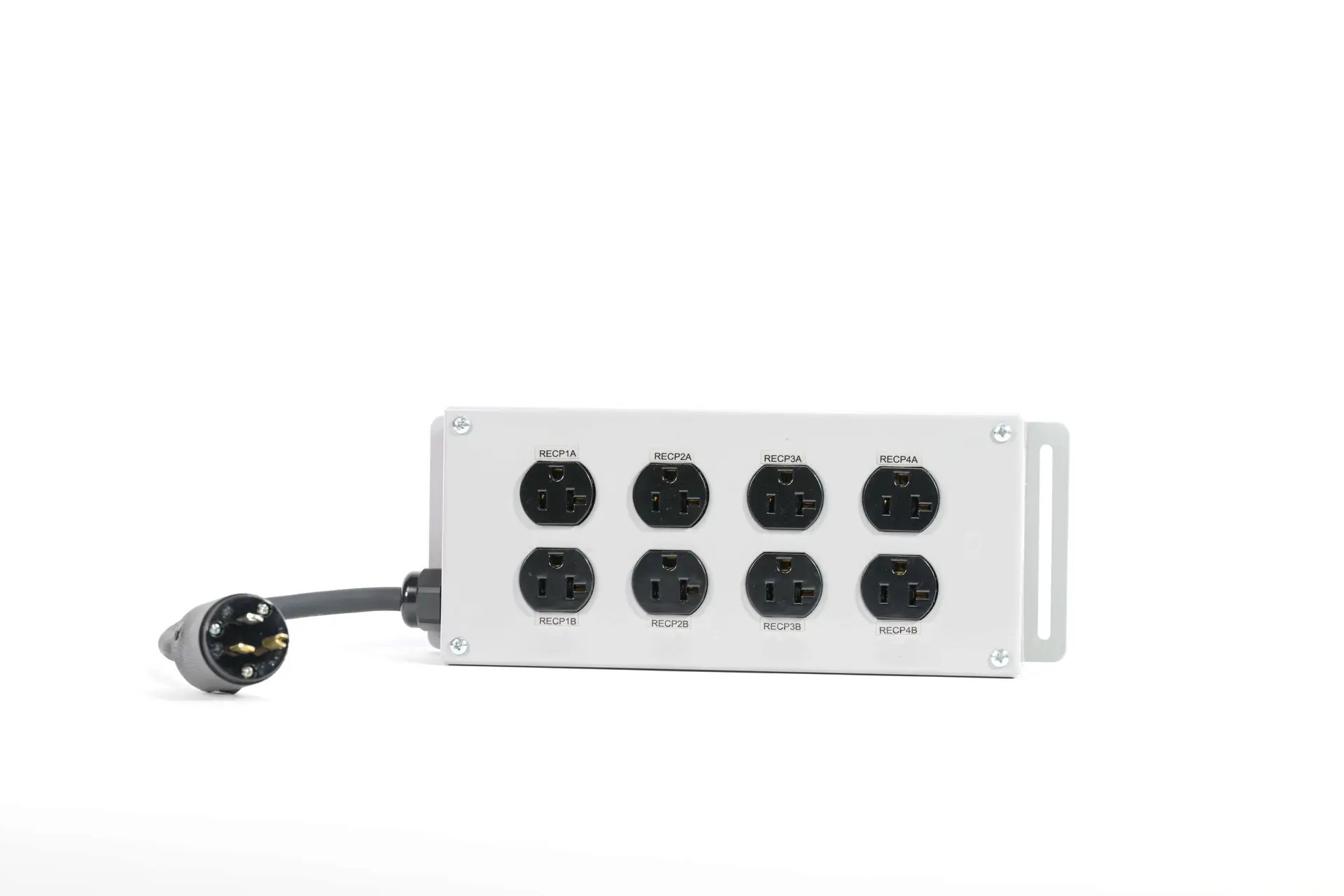

- Four duplex receptacle positions in a compact steel assembly.
- #12 AWG insulated solid-copper continuous equipment grounding conductor.
- Unspliced grounding conductor routed through each receptacle grounding termination.
- Dedicated bonding of both the steel enclosure body and enclosure cover.
- Powder-coated mild-steel enclosure for durability and corrosion resistance.
- Integral mounting wings for wall, pole, table, bench, cart, or similar mounting.
- Grounding path independent of mounting hardware and incidental enclosure contact.
- Suitable for fixed or portable technical power-distribution applications when properly installed and supplied.
