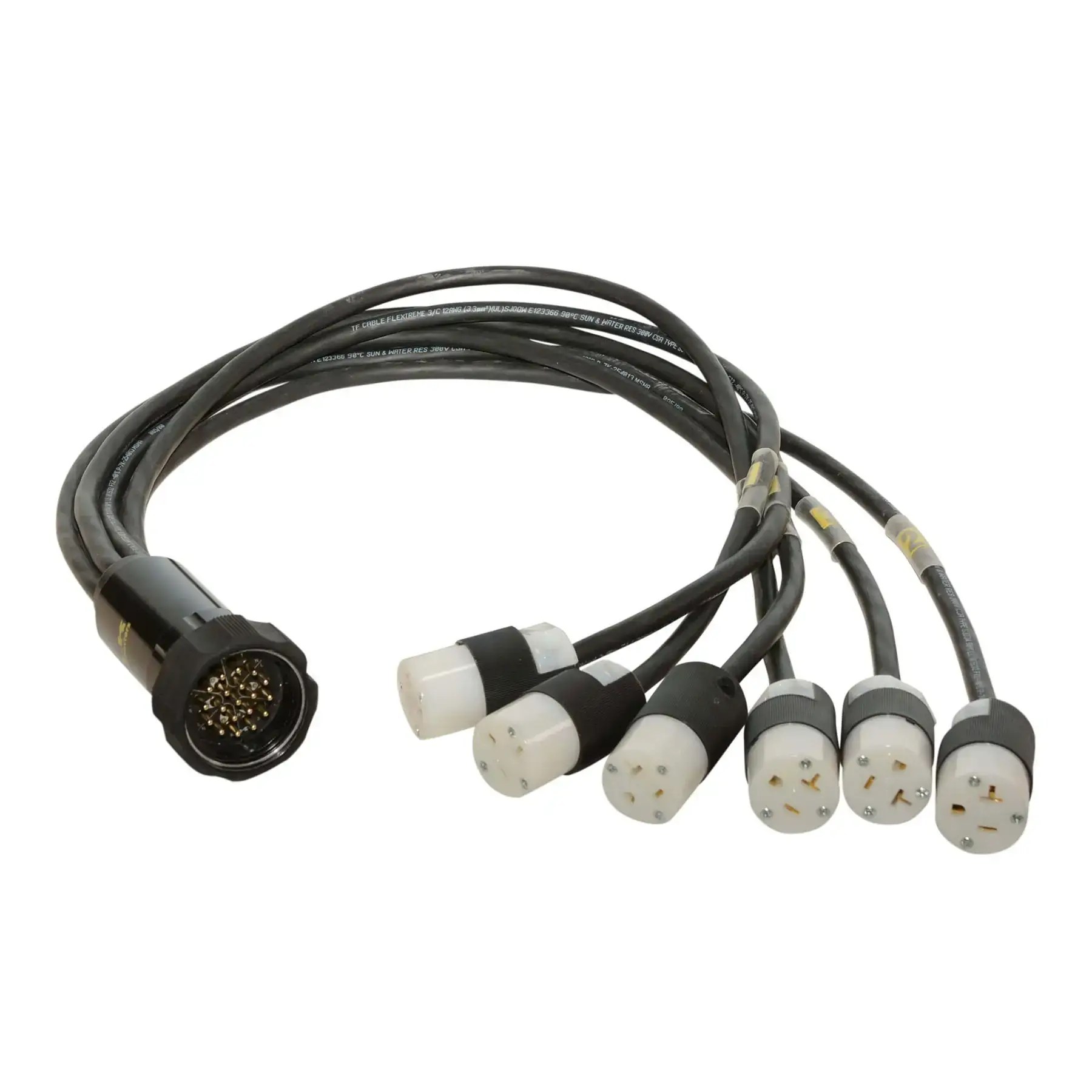

Socapex 19-Pin Breakout

The Socapex 19-Pin Breakout gives users a practical way to distribute stage and entertainment power from one 19-pin connector.

It uses a VSC19 inline male plug, six 3-foot 12/3 SJOOW tails, and six 15A 125V NEMA 5-15 female connectors.

It also uses Hubbell output connections for dependable performance.

In addition, clear heat shrink labels each tail for easier identification.

Request a Quote

This Socapex 19-Pin Breakout works well when customers need a compact fan-out solution for stage lighting and portable power distribution.

Because it uses a VSC19 inline male plug and six numbered 12/3 SJOOW tails, it routes power cleanly to multiple NEMA 5-15 outputs.

In addition, Amphenol identifies 19-pin SOCA connectors as part of stage, touring, broadcast, and event power workflows.

FAQ

What is a Socapex 19-Pin Breakout used for?
It breaks one 19-pin Socapex connection into multiple branch outputs for stage lighting and entertainment power applications.
What connector does this breakout use on the input side?
It uses a VSC19 inline male plug.
How many breakout tails does it include?
It includes six 3-foot 12/3 SJOOW tails.
What connectors are on the output side?
It includes six 15A 125V 2P/3W NEMA 5-15 female connectors.
Are the breakout tails numbered?
Yes. Each of the six cables is individually numbered with clear heat shrink.
Why is the 19-pin Socapex format important?
Amphenol identifies the classic 19-pin SOCA layout as a standard stage-lighting power connector with six hot, six neutral, and six ground pins.
