International Distribution Panel

The International Distribution Panel provides organized portable power distribution for entertainment, touring, and event applications.

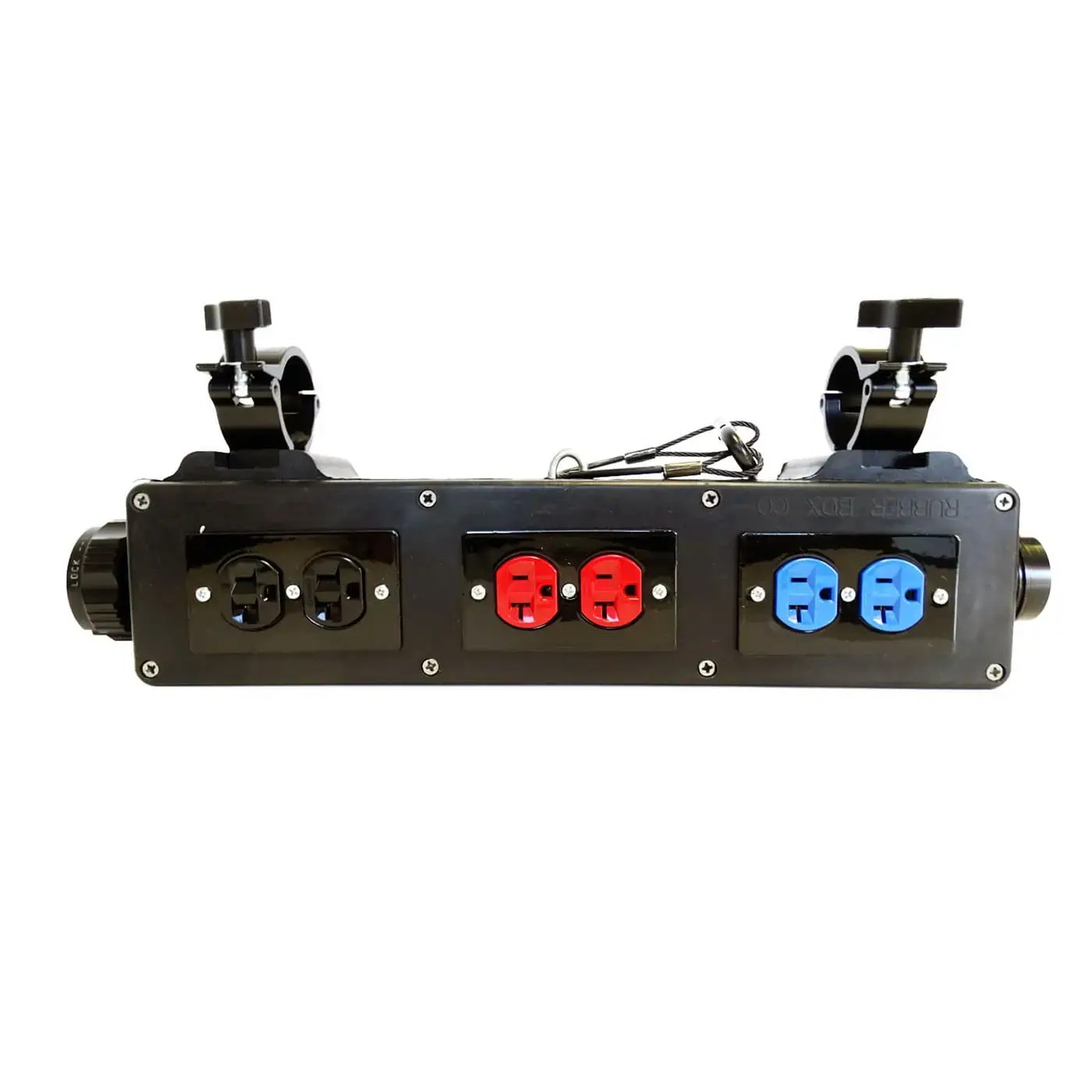

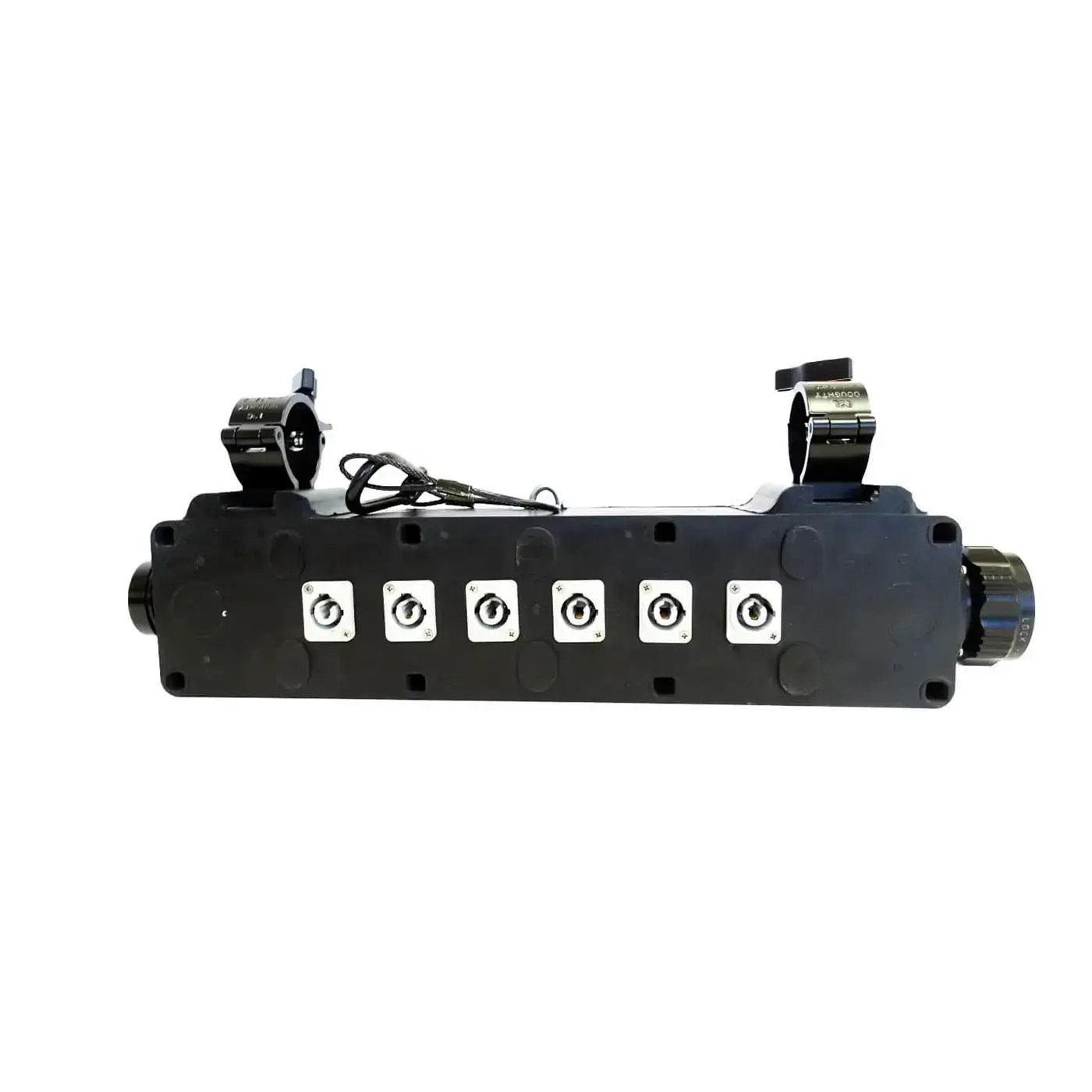

It uses one 19-pin male connector for input, one 19-pin female connector for pass-thru, and twelve total outputs that support either six Neutrik receptacles or six NEMA 5-20 duplexes, depending on source power.

In addition, the durable non-conductive rubber housing and truss-mount capability help support flexible overhead or floor placement.

Request a Quote

This International Distribution Panel works well when customers need one distro that can support different regional output formats.

Because it combines a 19-pin input, a 19-pin pass-thru, and either European-style Neutrik outputs or North American NEMA 5-20 duplexes, it gives users a more flexible way to handle mixed power needs.

In addition, the non-conductive rubber enclosure, compact footprint, and truss-mount hardware support portable use in entertainment and event environments.

FAQ

What is the International Distribution Panel used for?
It provides portable power distribution for entertainment, touring, and event applications that need 19-pin input and pass-thru.
What type of input does this unit use?
It uses one 19-pin male connector for input.
Does this unit include pass-thru power?
Yes. It includes one 19-pin female connector for output pass-thru.
What outputs does this panel include?
It provides twelve total outputs. Depending on source power, it uses either six Neutrik receptacles or six NEMA 5-20 duplexes.
Can this distro mount to truss?
Yes. It is intended to fasten to truss with two lightweight half Doughty adjustable hangers and one 300 mm safety cable.
What material does the enclosure use?
It uses a durable non-conductive rubber enclosure.
What are the dimensions and weight?
It measures 16 inches long by 3.5 inches deep by 3.25 inches wide and weighs 9 pounds, or 4 kilograms.
