Kydex Doghouse Power Distribution Box

$555.00

The 30A Kydex Doghouse Power Distribution Box provides compact portable power distribution for trade shows, events, and temporary power setups.

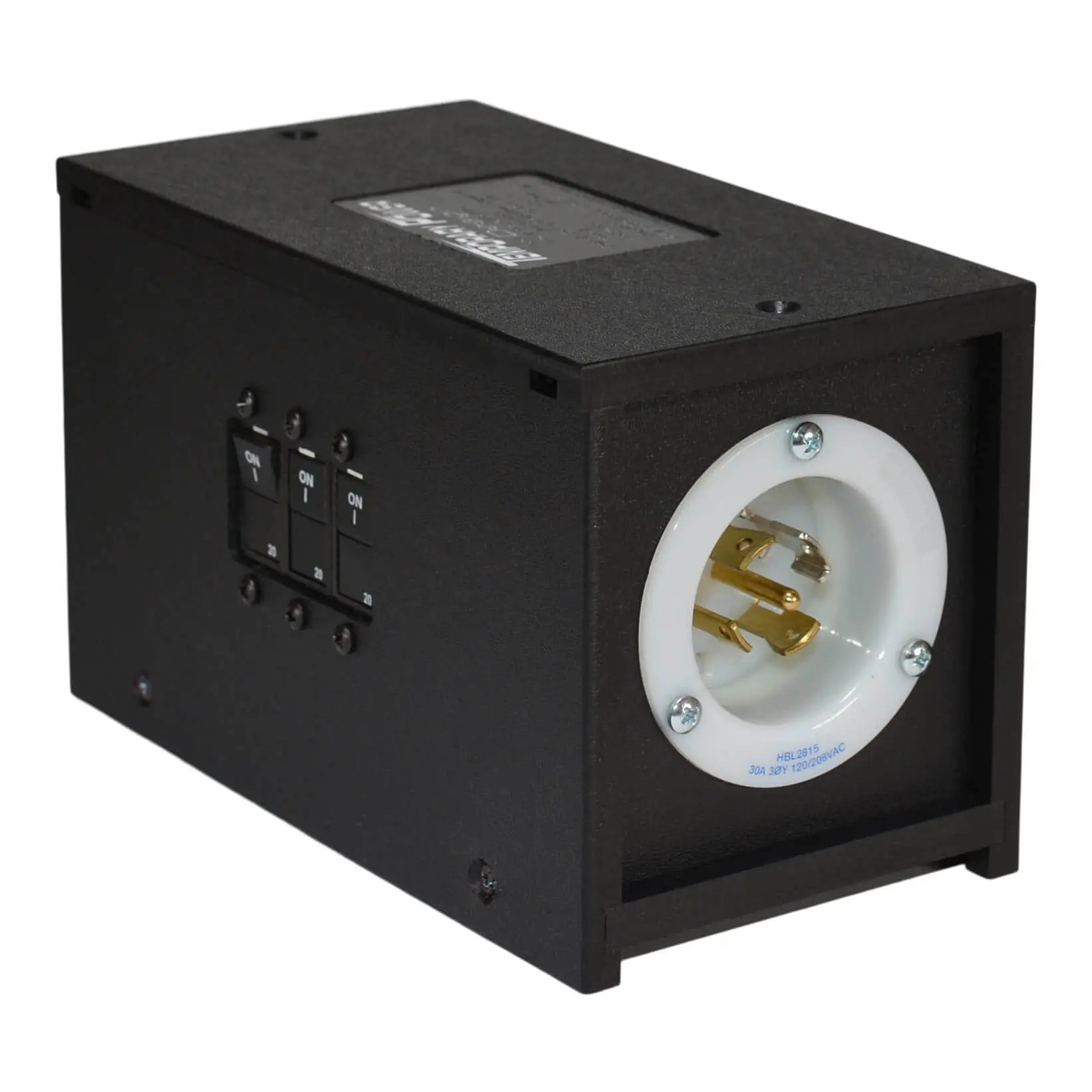

First, it features a 30A 208/120V AC 4P/5W NEMA L21-30 twist-lock input. It also includes a 30A 208/120V 4P/5W NEMA L21-30 twist-lock pass-thru.

In addition, it includes three 20A 120V AC 2P/3W NEMA 5-20 duplex receptacles with phase indicator lights. Those receptacles are phase color-coded as Black – X, Red – Y, and Blue – Z.

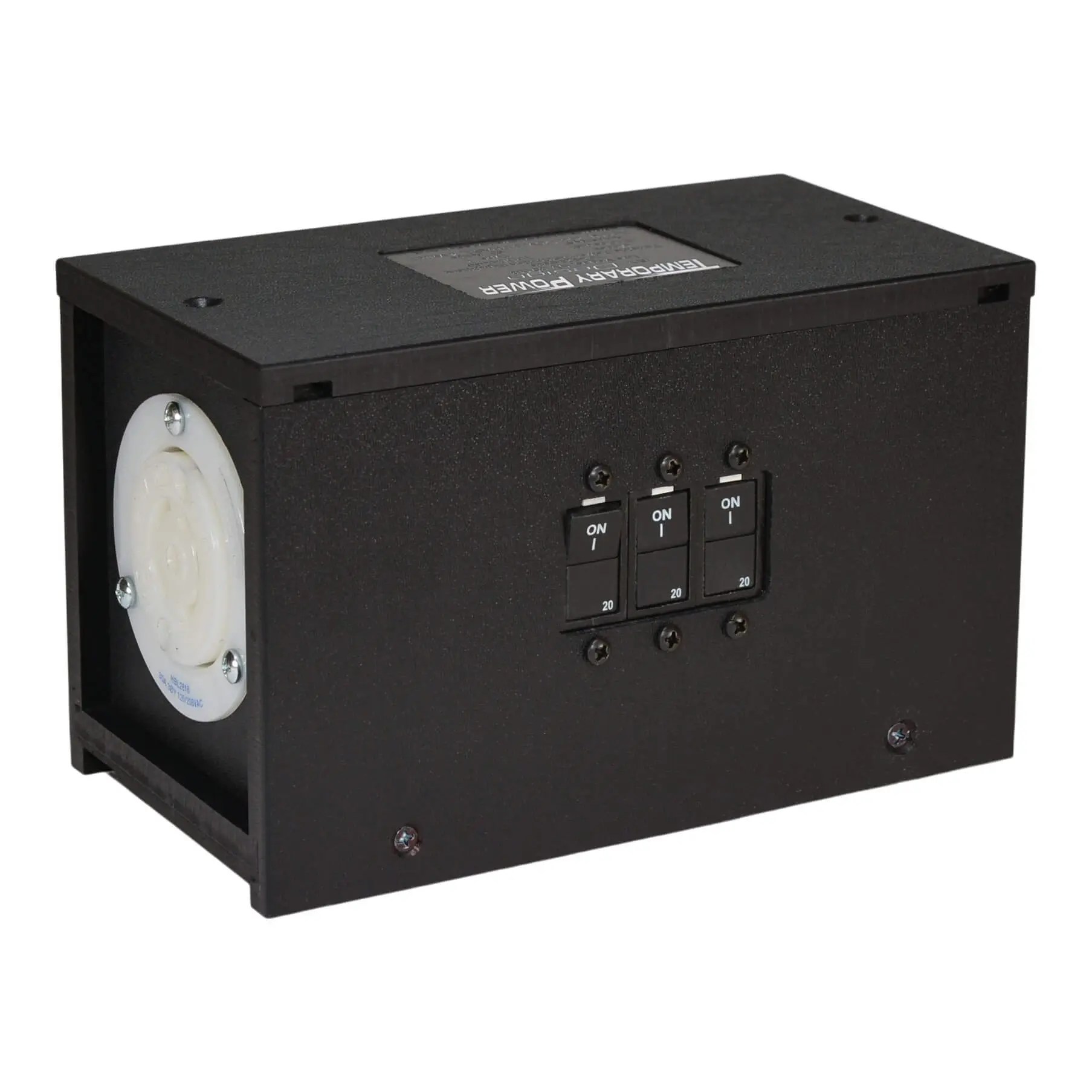

Meanwhile, three single-pole 20A hydraulic magnetic breakers sit directly opposite the Edison receptacles on the other side.

Finally, the Kydex enclosure measures 8.25 inches long, 4.5 inches wide, and 5 inches high.

Availability: 5 in stock

The 30A Kydex Doghouse Power Distribution Box works well when customers need compact branch power in a portable format. Because it combines an L21-30 input, an L21-30 pass-thru, and three phase color-coded duplex receptacles, it gives users organized branch power in one small unit. In addition, its hydraulic magnetic breakers and Kydex enclosure help support dependable use in trade show and temporary power environments.

FAQ

What is the 30A Kydex Doghouse Power Distribution Box used for?
It provides compact portable branch power distribution for trade shows, events, and temporary power setups.
What type of input does this doghouse use?
It uses a 30A 208/120V AC 4P/5W NEMA L21-30 twist-lock input.
Does this unit include pass-thru power?
Yes. It includes a 30A 208/120V 4P/5W NEMA L21-30 twist-lock pass-thru.
What outputs does this doghouse include?
It includes three 20A 120V AC 2P/3W NEMA 5-20 phase color-coded duplex receptacles with phase indicator lights.
Does it include breaker protection?
Yes. It includes three single-pole 20A hydraulic magnetic breakers.
